Riot Control Vehicles
At Mega Engineering Vehicles, we understand the importance of maintaining public order and safety during civil disturbances and protests. Our Riot Control Vehicles are designed to provide law enforcement agencies with the necessary tools to effectively manage crowd control situations. These vehicles are equipped with non-lethal deterrents such as water cannons, tear gas launchers, and loudspeaker systems, ensuring the ability to disperse crowds while minimizing harm. Our team at Mega EV is committed to custom tailoring these vehicles to suit the unique needs of any law enforcement agency. Whether it's integrating specialized communication systems, enhancing armor protection, or incorporating specific crowd management features, we ensure that our Riot Control Vehicles can be modified to meet the precise requirements of our clients, providing them with the utmost flexibility and effectiveness in maintaining public order.
-
*Mega Design structural integrated armored body
*Armoring conversion as per CEN level B6 or B7
*OEM climate control system
*Heavy duty bumpers are design to withstand the damage from ramming obstacles
*360 degree traversing turret
*7 gun ports
*Military standard wheel rims and run flats
*Heavy duty electric winch & tire jack
*Reinforced suspension & braking systems
*Base vehicle: Ford F550, 4×4, 141’’ WB
*Engine: 6.7 Liter V8, Turbo Diesel
*Horsepower: 400hp @ 2,800RPM
*Torque: 800 hp @ 1,600RPM
*Overall length: 237″
*Width: 97.7″
*Height (with turret): 122.2″
*Height (without turret): 93.6″
*Curb weight (armored): 17,350 lbs.
*GVWR: 19,775 lbs.
*Payload: 2,425 lbs.
*Transmission: Automatic, electronically controlled *Steering: Power-assisted
*Tires and wheels: 335/85 R20 or 12.5 R20 with 20 x 11 wheels, rated to 6,779.2 lbs. each
*Convenience: Main and auxiliary A/C, AM/FM radio with 2 speakers
*Exterior color: As ordered
-
*Mega Design structural integrated armored body
*Armoring conversion as per CEN level B6 or B7
*OEM climate control system
*Heavy duty bumpers are design to withstand the damage from ramming obstacles
*360 degree traversing turret
*9 gun ports
*Military standard wheel rims and run flats
*Heavy duty electric winch & tire jack
*Reinforced suspension & braking systems
*Base vehicle: Ford F550, 4×4, 180’’ WB
*Engine: 6.7 Liter V8, Turbo Diesel
*Horsepower: 400hp @ 2,800RPM
*Torque: 800 hp @ 1,600RPM
*Overall length: 300″
*Width: 97.7″
*Height (with turret): 122.2″
*Height (without turret): 93.6″
*Curb weight (armored): 20,350 lbs.
*GVWR: 22,775 lbs.
*Payload: 3,125 lbs.
*Transmission: Automatic, electronically controlled *Steering: Power-assisted
*Tires and wheels: 335/85 R20 or 12.5 R20 with 20 x 11 wheels, rated to 6,779.2 lbs. each
*Convenience: Main and auxiliary A/C, AM/FM radio with 2 speakers
*Exterior color: As ordered
-
PA SYSTEM
NOZZLE CAMERAS
LED FLOOD LIGHTS
MULTIPLE MONITORS
WATER TANK CAPACITY
TOP WASH DOWN SYSTE
BULLETPROOF CAMERAS
DUEL CHEMICAL DYE TANKS
UNDER VEHICLE WASH DOWN
CUSTOMIZED CONTROL CONSOLE
BALLISTIC RADIATOR PROTECTION

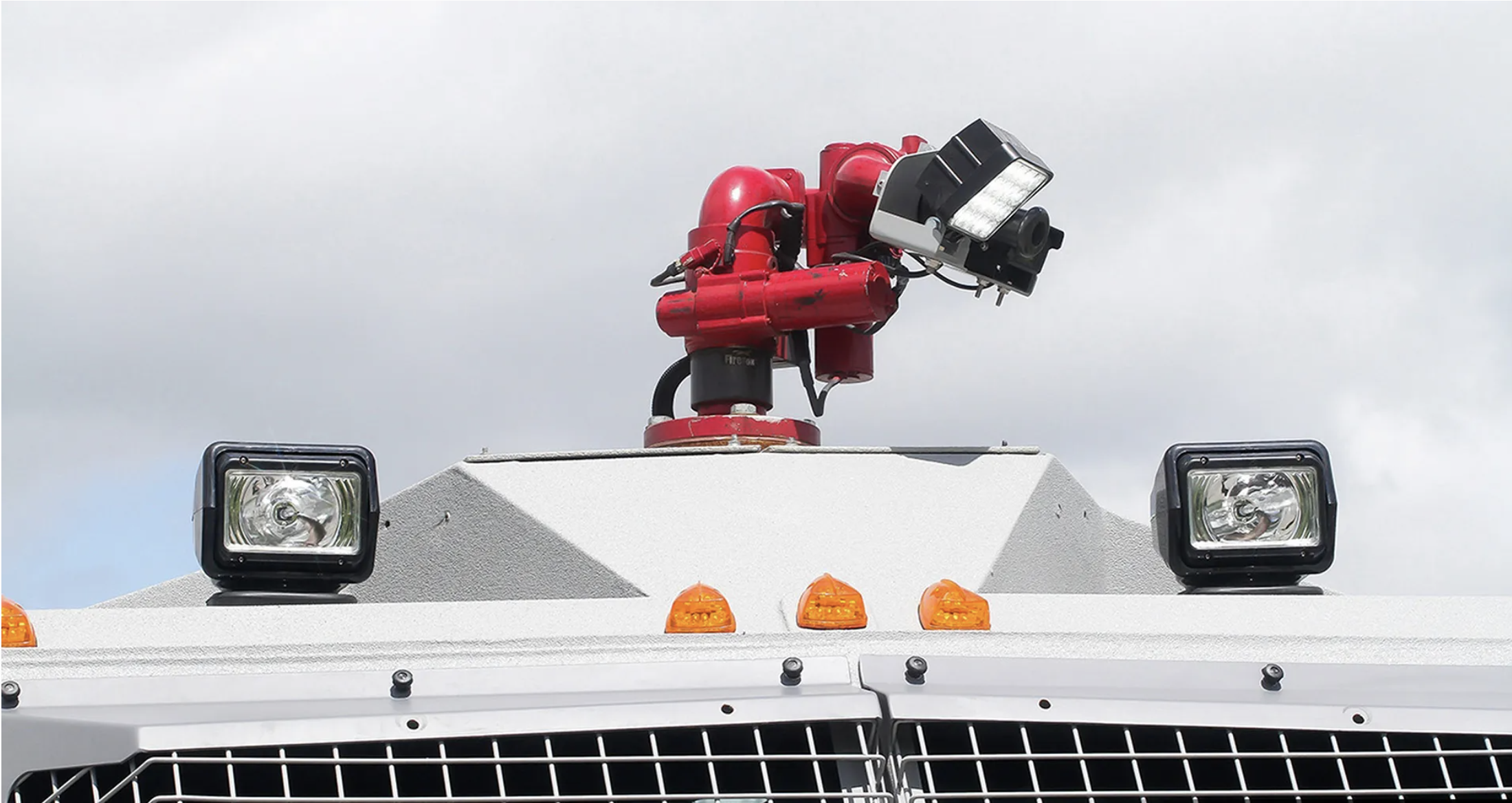

DUEL CANNONS UP TO 500 GPM EACH
CUTOMIZED GUN-PORTS INSTALLATION
OPERATOR REMOTE CONTROL JOYSTICK
HYDRAULIC-BALLISTIC-BARRICADE-REMOVER
HEAVY-DUTY ALL TERRAIN-TIRES WITH RUN-FLATS
BALLISTIC-GLASS WITH WINDOW MESH PROTECTION AND A GUN-PORT
DIMENSIONS
HEIGHT 122 INCHES
LENGTH 350 INCHES
WIDTH 101 INCHES
WHEELBASE 230 INCHES
Water Cannon Vehicles Features and Specifications:
MEV – Mega Engineering Vehicles is proud to introduce the Armored Water Cannon anti-riot vehicle. Engineered from the ground up, the AWD Armored Water Cannon is available in both 4×4 and 6×6 configurations, with a fully armored cabin up to STANAG 4569 Level II, that provides ballistic, mine-blast and IED protection. The vehicle comes with a powerful, variable geometry, turbocharged and inter-cooled diesel engine, capable of operating in high temperature and dusty environments. This vehicle is an excellent solution for various scenarios including riot control, fire fighting and for preserving peace and order. The Armored Water Cannon holds a 14,000 Lt corrosion free water tank with high pressure water jet systems with a 65m throw range. The vehicle also features a water spray system to protect the roof, cabin sides, tire shield and underbody from various burning objects, Molotov cocktails or other dangerous liquids and gases. The armored water cannon comes equipped with a state of the art Command Control System that holds an integration of surveillance cameras, night vision capabilities, PA system with strobe lights, roof monitors as well as an integrated fire suppression system. MEV Armored Water Cannon offers a comfortable, reliable and efficient solution for matters of crowd control, rioting and the preserving of peace and order.
LEVEL OF PROTECTIONCEN B6, B7
NIJ level III, IV
STANAG 4569 Level I and IIENGINE(S)12.8L I6 Diesel (480hp/1623lb-ft)TRANSMISSION(S)Automatic
ManualSEATING CAPACITYUp to 6
Tactical Systems was experimenting with additives (salt and additives to reduce the breakup of the stream into droplets) that would allow electricity to be conducted through water. They have demonstrated delivery from a distance of up to twenty feet (6 m), but have not yet tested the device on people.
